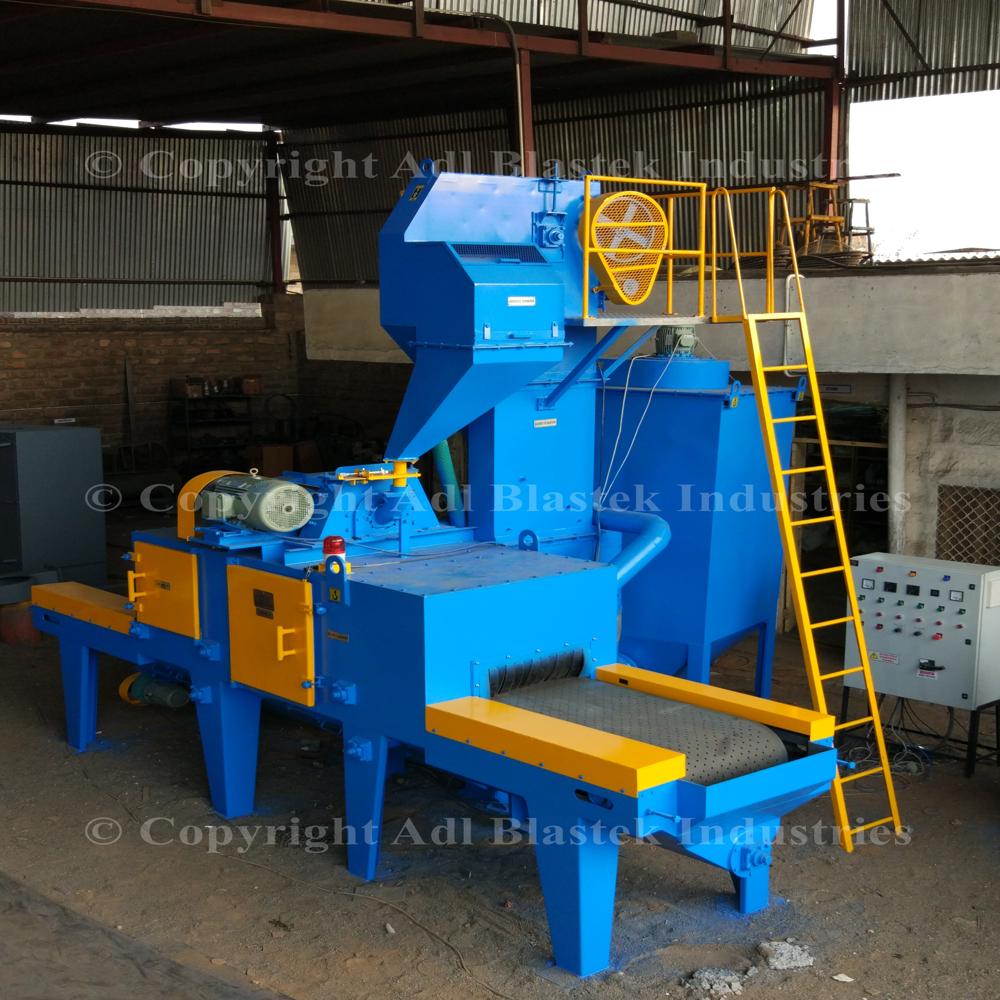

SHOT BLASTING MACHINE

SHOT BLASTING MACHINE Specification

Production Capacity
Up to 120 sq.m/hr Pcs/hr

Frame Type
Heavy Duty Steel

Drive
Belt Drive

Connectivity Options
Digital Display

Country Of Origin
India

Operating Temperature
0C to 50C Celsius (oC)

Machine Type
airless

Accuracy
99 %

Cooling System
Air Cooling

Motor Power
7.5 HP Horsepower (HP)

Model No
SBL-1800

Lubricating System
Automatic

Features
Sturdy Construction, Low Maintenance, High Efficiency

Voltage
415 V Volt (v)

Power Rating
18 kW

Control System
PLC

Frequency
50 Hz Hertz (HZ)

Noise Level
<82 dB db

Product Type
Other

Technology
Other

Power Source
Electricity

Operating Type
Semi Automatic

Power
18 kW Watt (w)

Pressure
7-8 Bar Bar

Surface Treatment
Other

Dimension (L*W*H)
2700mm x 1500mm x 2200mm Millimeter (mm)

Weight (kg)
1800 kg Kilograms (kg)

Color
Gray & Blue

Warranty
1 year

Usage & Applications
Remove rust, surface preparation, forging, foundry

Abrasive Flow Rate
300 kg/min

Operation Cycle Time
6-8 min

Safety Features
Overload Protection, Emergency Stop Switch

Blast Nozzle Material
Carbide

Dust Collector Type
Cartridge Filter

Electric Consumption
Approx. 20 kWh

Door Type
Manual Hinged Door

Blast Wheel Quantity
2

Main Chamber Material
Manganese Steel

Blast Wheel Diameter
350 mm

Chamber Thickness
12 mm

Inlet/Outlet Size
450mm x 400mm

Workpiece Loading Capacity
Up to 600 kg

SHOT BLASTING MACHINE Trade Information

Minimum Order Quantity
1 Number

Delivery Time
7 Week

About SHOT BLASTING MACHINE

AEROWHEEL SURFACE FINISHING

SHOT BLASTING MACHINE TECHNICAL SPECIFICATION

1. Product Overview

A Shot Blasting Machine is an advanced surface preparation system used to remove rust, scale, paint, and other contaminants from metal surfaces. It enhances surface finish and improves coating adhesion for long-lasting performance.

2. Machine Type

Type: Air Operated / Wheel Type Shot Blasting Machine

Operation: Manual / Semi-Automatic / Fully Automatic

Applications: Surface Cleaning, Rust Removal, Paint Removal, Shot Peening

3. Technical Specifications

ParameterSpecification

Machine Capacity100 500 Kg / Batch

Production Rate4 25 Sq. Meter / Hour

Blast Pressure80 100 PSI

Air Consumption17 217 CFM

Motor Power3 HP 50 HP

Nozzle Size5 10 mm

Blast Hose Length5 12 Meter

Abrasive TypeSteel Shots / Steel Grit / Glass Beads

Machine BodyHeavy Duty Mild Steel

Dust CollectorCyclone / Cartridge Type

Control PanelPLC / Electrical Control Panel

4. Main Components

Blast Wheel / Nozzle System

Blast Cabinet / Chamber

Abrasive Hopper

Bucket Elevator

Separator Unit

Dust Collector System

Electrical Control Panel

5. Key Features

High-efficiency surface cleaning

Uniform and consistent finishing

Robust and low-maintenance design

Energy-efficient performance

Advanced dust collection system

Heavy-duty industrial construction

6. Applications

Steel Fabrication Industry

Automotive Components

Foundry & Casting Units

Pipe & Cylinder Cleaning

Structural Steel Preparation

7. Advantages

Faster cleaning process

Improved coating adhesion

Enhanced corrosion resistance

Reduced manual labor

Cost-effective surface treatment solution

8. Optional Attachments

Automatic Conveyor System

Rotary Table / Tumble Type System

Advanced Dust Collector

Remote Control Operation

Soundproof Cabinet

9. Marketing Tagline

Aerowheel Surface Finishing Company

Delivering Precision Surface Finishing with Advanced Shot Blasting Technology

High Efficiency and Precision Engineering

The SBL-1800 is engineered for reliable, high-volume shot blasting with notable productivity and accuracy. Its heavy-duty steel frame, advanced PLC controls, and high-precision design ensure consistent, quality surface treatments while keeping maintenance needs minimal. Powerful motors and robust construction allow the unit to process large workpieces efficiently with precise abrasive flow.

Durable Construction for Demanding Applications

Manufactured with manganese steel and 12 mm thick chamber walls, this shot blasting machine is built to withstand intense industrial use. Ideal for rust removal, forging prep, and foundry cleaning, its carbide blast nozzles and air cooling enhance operational lifespan. Its manual hinged door and ample loading capacity support various workpiece dimensions for versatile usage.

Advanced Safety and User Controls

User safety and operational convenience are prioritized with the SBL-1800. Integrated overload protection, emergency stop functions, and a PLC-based control system offer secure and intuitive machine handling. A digital display and automatic lubrication system further support safe, easy monitoring and operation to maintain productivity and worker safety.

FAQ's of SHOT BLASTING MACHINE:

Q: How does the SBL-1800 Shot Blasting Machine operate?

A: The SBL-1800 functions using two 350 mm blast wheels powered by a 7.5 HP motor. It uses an automatic abrasive flow at 300 kg/min to thoroughly clean or prepare surfaces. Controlled via a PLC system, it ensures a supervised, efficient operation completed within a 6-8 minute cycle for each batch.

Q: What types of workpieces can be processed with this shot blasting machine?

A: This machine is suitable for heavy workpieces up to 600 kg. Its robust chamber and inlet/outlet size (450mm x 400mm) accommodate various components from forging, foundry, and machining operations, making it ideal for rust removal, paint stripping, and surface preparation.

Q: When should I choose a cartridge filter dust collector for shot blasting?

A: A cartridge filter dust collector is recommended when high dust filtration efficiency is needed. It is ideal for environments requiring clean air, as it effectively captures particles generated during blasting, ensuring safer and cleaner working conditions.

Q: Where is the SBL-1800 most beneficially used?

A: This machine is particularly advantageous in manufacturing, foundry, fabrication, and forging facilities across industries. It excels in batch production environments needing high throughput and consistent surface preparation quality.

Q: What is the step-by-step process of using the SBL-1800 Shot Blasting Machine?

A: Begin by loading the workpiece manually into the chamber. Secure the manual hinged door, select the desired operation via the PLC controls, and initiate the cycle. The blast wheels propel abrasive material at controlled rates, cleaning or preparing the surface within 6-8 minutes. The cartridge filter collects dust, and after the cycle ends, the workpiece can be safely removed.

Q: How does the SBL-1800 enhance efficiency and productivity?

A: With a high processing speed of up to 120 sq.m/hr, semi-automatic operation, and features like automatic lubrication and air cooling, the SBL-1800 minimizes downtime and maximizes output. Its precision engineering and robust construction ensure efficient, reliable surface treatment with reduced maintenance.

Q: What are the main benefits of using the SBL-1800 Shot Blasting Machine?

A: Key advantages include high surface cleaning and preparation efficiency, reduced labor due to automation, increased workplace safety from built-in protections, longevity from sturdy materials, and reliable dust control via the cartridge filter, all contributing to superior workplace productivity.
