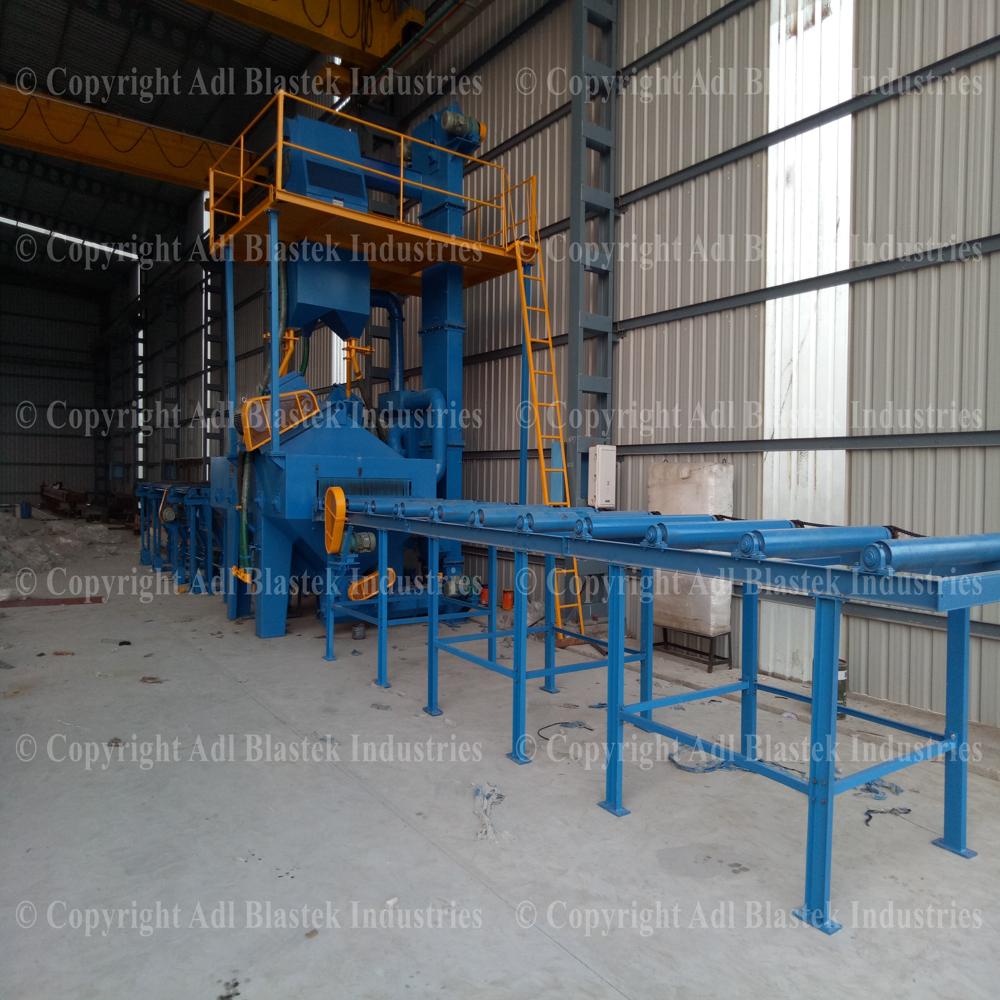

Stone Shot Blasting Machine

About Stone Shot Blasting Machine

Loading the Workpiece

• Metal parts (plates, sheets, or components) are placed on a roller conveyor.

• Rollers are usually powered and synchronized to move parts at a controlled speed.

• The conveyor can handle continuous flow of multiple components.

---

2 Conveyor Movement

• The rollers carry the workpiece through the blast chamber.

• The speed of the conveyor is adjusted depending on the degree of cleaning required.

Typical conveyor speed: 0.53 m/min, depending on part size and surface condition.

---

3 Shot Blasting

• The machine has 4 blast wheels, usually positioned on the top, bottom, and sides of the chamber.

• High-speed steel shots are thrown from the blast wheels onto the moving metal surface.

• All surfaces of the component are cleaned as it passes through the chamber.

Key points:

• Blast wheel speed: ~25003000 RPM

• Shot velocity: 6080 m/s

• Abrasive flow rate: 300500 kg/min (depends on wheel size)

---

4 Abrasive Recovery System

• Steel shots fall into a hopper below the conveyor.

• A screw conveyor moves the used shots to a bucket elevator.

• The separator removes dust and broken particles, returning clean steel shots to the blast wheels.

This ensures continuous operation with minimal wastage.

---

5 Dust Collection

• Dust and fine particles are collected in a dust collector system (bag filter or cartridge).

• Clean air is exhausted outside the machine, keeping the environment safe.

---

6 Unloading

• After passing through the blast chamber, cleaned parts exit the conveyor.

• They are ready for inspection, painting, or assembly.

---

Main Components of a 4-Wheel Roller Conveyor Shot Blasting Machine

1. Blast chamber

2. Roller conveyor system

3. 4 blast wheels (top, bottom, and sides)

4. Screw conveyor

5. Bucket elevator

6. Air separator

7. Dust collector

8. Control panel

---

Simple Process Flow

Loading Conveyor Movement 4-Wheel Shot Blasting Shot Recovery Dust Collection Unloading

---

Advantages of 4-Wheel Roller Conveyor Machine

• Continuous processing of large or heavy sheets/plates

• Uniform cleaning of top, bottom, and sides

• Efficient abrasive recycling

• Suitable for mass production in foundries and fabrication shops

Advanced Airless Shot Blasting Technology

Utilizing airless propulsion, the Stone Shot Blasting Machine offers superior cleaning and surface preparation for stone materials. Its 25 HP powerful motor and high-precision control provide efficient and consistent results, while the low noise output enhances operator comfort during continuous use. Automatic operations make it ideal for demanding industrial environments.


Durability and User-Friendly Design

With a sturdy build weighing 35 tonnes, this machine is constructed to withstand rigorous industrial use. Its fully automatic control system simplifies handling, minimizes manual intervention, and enhances productivity. The user-centric approach ensures easy operation with high reliability, backed by comprehensive support and a 1-year warranty for peace of mind.
