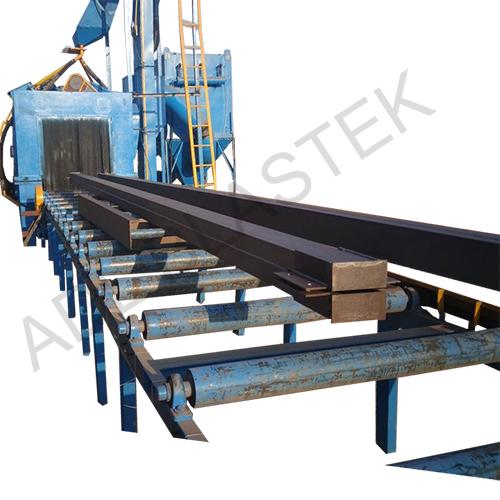

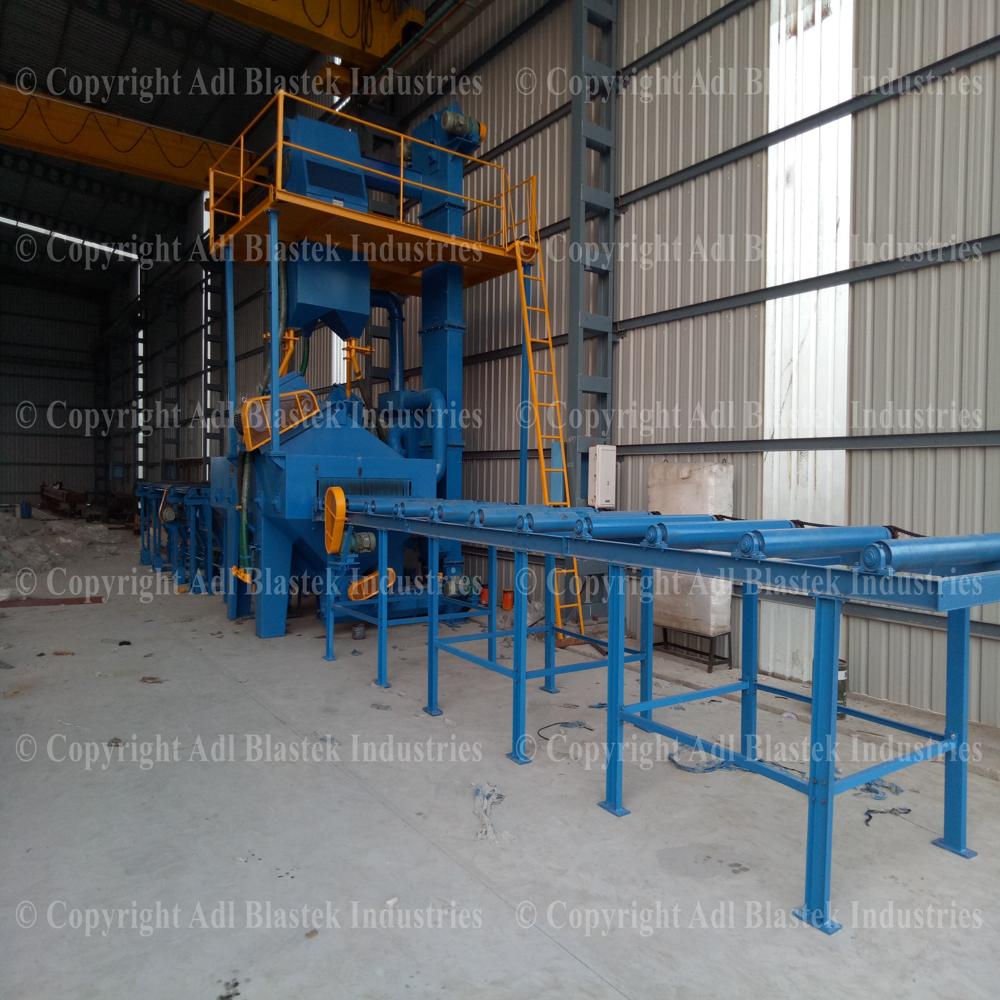

I beam shot blasting machine

Name: I beam shot blasting machine
Brand: ADL BLASTEK INDUSTRIES
Price: 1800000.0 INR
Availability: InStock

Price 1800000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

I beam shot blasting machine Specification

Frequency
50 Hz Hertz (HZ)

Noise Level
85 dB db

Production Capacity
3-5 ton/hour Ton

Motor Power
18.5 kW (Each Turbine) Kilowatt (kW)

Cooling System
Air Cooling

Country Of Origin
india

Machine Type
I Beam Shot Blasting

Model No
ADL-BT-RC

Lubricating System
Centralized

Voltage
380-415V Volt (v)

Control System
Fully Automatic

Power Rating
75 kW

Operating Temperature
13 Kelvin (K)

Features
High efficiency, robust structure, automatic abrasive circulation, dust collector included

Accuracy
99 %

Frame Type
Heavy Duty Welded Steel

Drive
Electric Motor

Connectivity Options
Local Interface

Product Type
Other

Technology
Other

Power Source
Electricity

Operating Type
Automatic

Power
40 Horsepower (HP)

Pressure
5-7 Bar

Surface Treatment
Other

Dimension (L*W*H)
8000 mm x 3500 mm x 3500 mm Millimeter (mm)

Weight (kg)
Approx. 12000 kg Kilograms (kg)

Color
Blue / Grey

Warranty
1 YEAR

Usage & Applications
Surface cleaning and derusting of I-beams and structural steel

Operating Personal Required
1 operator

Shot Separator
Magnetic Separator System

Blast Chamber Material
Wear-resistant manganese steel

Maintenance Access
Full-size doors on both sides

Conveyor System
Roller Conveyor

Maximum I-beam Size
1200 mm

Impeller Material
Alloy Steel

Abrasive Type
Steel Shot / Grit

Transportability
Floor-mounted static

Blast Wheel Quantity
4 units

Painting Option
Optional after shot blasting

Dust Emission Level
10 mg/m3

Dust Collector Type
Cartridge Filter

Safety Features
Emergency stop, overload protection

Minimum I-beam Size
150 mm

Entry/Exit Height
900 mm

Compatible Abrasive Size
0.8 mm - 2.5 mm

Cycle Time
Continuous

Blast Chamber Size
1200 mm width x 1600 mm height

I beam shot blasting machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Week

I beam shot blasting machine About

Step-by-Step Working (Powered Type)

Motor starts
- Electric motor generates rotational motion
Power transmission
- Motion is transferred via chain/belt to rollers
Rollers rotate
- All or selected rollers spin
Object movement
- Items placed on rollers move forward automatically

Key Components

Rollers (steel/plastic)
Bearings (for smooth rotation)
Drive motor
Chain/belt drive
Frame
Control system (in advanced setups)

Where Its Used

Warehouses & logistics
Manufacturing plants
Assembly lines
Packaging units

Advantages

Saves labor
Fast and efficient
Can handle heavy loads
Low maintenance (especially gravity type)

Important Tips for Operation

Keep rollers clean (dust can stop movement)
Do not overload
Ensure proper alignment
Regular lubrication (for bearings)

Comprehensive Surface Treatment

The IBSBM-8000 delivers thorough and uniform cleaning and derusting for I-beams of various sizes through a high-performance wheel blasting system. Its automatic abrasive circulation and precise shot separator guarantee consistent results, making it ideal for heavy-duty applications in fabrication and construction industries.

Robust and Durable Construction

Constructed with a heavy-duty welded steel frame and lined with wear-resistant manganese steel, the blast chamber ensures longevity even under the most rigorous usage. Centralized lubrication and accessible full-size doors facilitate maintenance, leading to extended machine life.

Advanced Filtration and Environmental Control

Equipped with a cartridge filter dust collector, the IBSBM-8000 maintains dust emissions as low as 10 mg/m3, supporting a cleaner and safer work environment. The optional painting feature further prepares surfaces for downstream processes, improving efficiency and quality.

FAQ's of I beam shot blasting machine:

Q: How does the IBSBM-8000 I Beam Shot Blasting Machine operate and what is its process flow?

A: The IBSBM-8000 operates with continuous cycle time. I-beams are loaded on the roller conveyor and pass through the blast chamber where four alloy steel wheels propel steel shot or grit at high velocity, effectively cleaning and derusting the surface. The abrasive is automatically circulated, separated magnetically, and filtered for reuse, ensuring consistent and economical operation.

Q: What beam sizes can be processed, and where is this machine best used?

A: This machine accommodates I-beams ranging from 150 mm to 1200 mm in size and is best used in industrial settings such as steel fabrication shops, construction yards, and manufacturing facilities focused on surface treatment and preparation of structural steel.

Q: When is surface painting possible during the operation with this machine?

A: The surface painting option is available as an auxiliary process, immediately following shot blasting. This ensures optimal paint adherence on thoroughly cleaned steel surfaces, streamlining the preparation and finishing workflow.

Q: What safety and maintenance features are incorporated in the IBSBM-8000?

A: The machine includes multiple safety systems such as emergency stops, overload protection, and full-size access doors on both sides of the blast chamber for secure maintenance. Its centralized lubrication system further simplifies routine upkeep, ensuring reliable long-term operation.

Q: How efficient is the dust collection and what is the environmental benefit?

A: The integrated cartridge filter dust collector captures dust down to a level of 10 mg/m3, maintaining air quality and complying with industrial safety standards. This not only protects workers but also meets strict environmental regulations.

Q: What are the main advantages of using this shot blasting machine?

A: Key benefits include high production capacity (3-5 ton/hour), robust structure, consistent surface quality, reduced labor (only one operator required), and improved safety and environmental performance thanks to advanced automation, filtration, and safety features.
