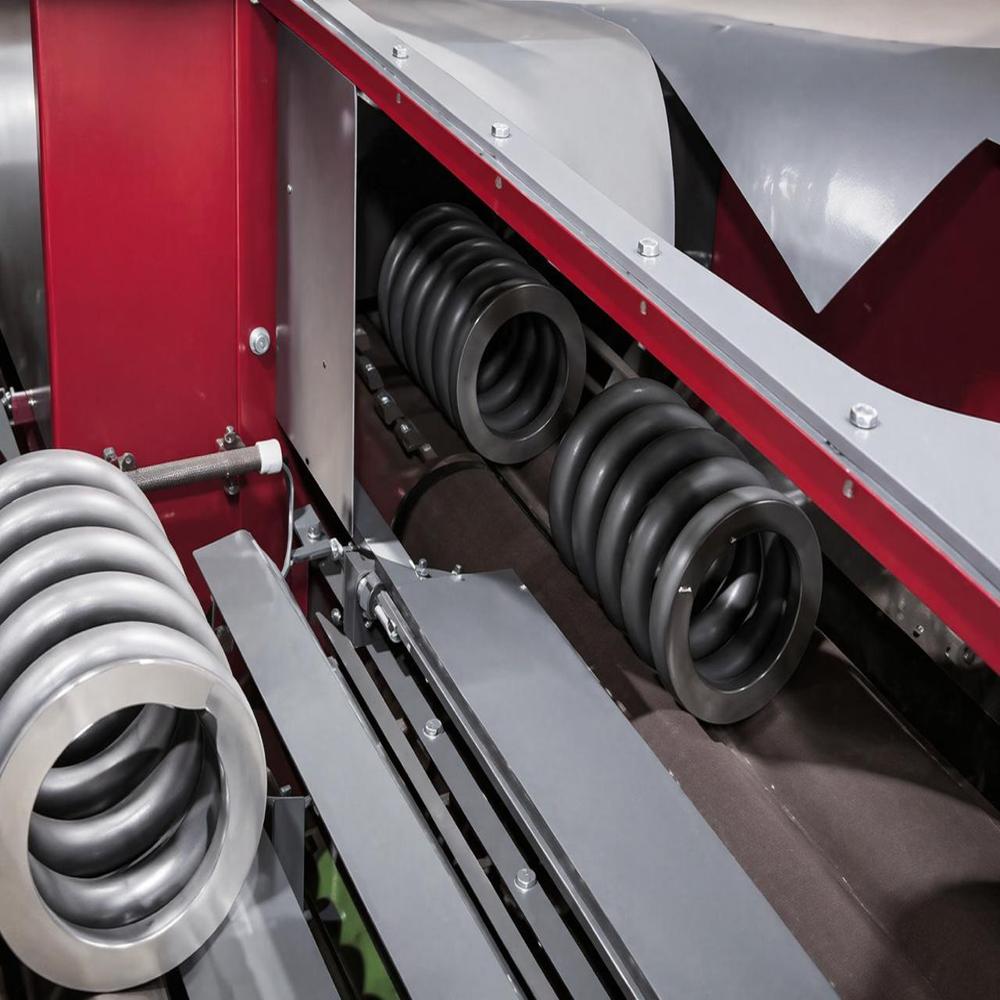

Semi-Automatic Coil Spring Shot Peening Machine

Semi-Automatic Coil Spring Shot Peening Machine Specification

Model No
CS-SPM-07

Machine Type
Shot Peening Machine

Cooling System
Air Cooled

Accuracy
0.5 mm

Production Capacity
50-80 springs per hour

Voltage
380V

Lubricating System
Automatic

Drive
Electric motor driven

Noise Level
85 dB(A)

Motor Power
7.5 kW

Features
Dust-free operation, uniform shot flow, safety interlock

Connectivity Options
Standard electrical interface

Frame Type
Heavy duty welded steel frame

Operating Temperature
5C to 45C

Power Rating
7.5 kW

Frequency
50 Hz

Product Type
Semi-Automatic Coil Spring Shot Peening Machine

Technology
Shot Peening

Power Source
Electric

Operating Type
Semi-Automatic

Power
7.5 kW

Pressure
0.6 - 0.8 MPa

Surface Treatment
Blasting / Peening

Dimension (L*W*H)
2400 mm x 2200 mm x 2300 mm

Weight (kg)
1800 kg

Color
Blue and Grey

Usage & Applications
Coil spring residual stress induction, surface enhancement

Dust Collector
Integrated

Control Panel
Digital HMI Interface

Number of Wheels
1

Abrasive Type
Steel shots

Optional Upgrades
Automatic loading/unloading, remote diagnostics

Feeding Mechanism
Rotary table with spring holders

Shot Flow Rate
Adjustable - 5 to 25 kg/min

Power Consumption
7.5-8 kW (max)

Maintenance Access
Front and side doors for easy access

Minimum Spring Diameter
50 mm

Maximum Spring Diameter
300 mm

Safety Features
Emergency stop, interlocked doors

Peening Coverage
360-degree exposure

Compressed Air Requirement
0.6-0.8 MPa, dry and filtered

Chamber Material
Manganese steel lining

Working Speed
Adjustable

Semi-Automatic Coil Spring Shot Peening Machine Trade Information

Minimum Order Quantity
1 Set

Delivery Time
7 Days

About Semi-Automatic Coil Spring Shot Peening Machine

Get the best in class with the Semi-Automatic Coil Spring Shot Peening Machine, an eminent solution for delivering impeccable surface enhancement and residual stress induction to coil springs. Order this highlighted model, CS-SPM-07, featuring an adjustable rotary table, digital HMI controls, and robust manganese steel lining for intensive, dust-free peening. With uniform shot flow, precise controls, and advanced safety systems including interlocked doors and emergency stops, it stands as the best choice for manufacturers seeking quality and efficiency. Ideal for production rates of 50-80 springs/hour, this electric, PLC-controlled system ensures accuracy and reliability every time.

Key Usage & Features of Semi-Automatic Coil Spring Shot Peening Machine

Designed for semi-automatic operation, this machine excels in coil spring peening using steel shots for thorough 360-degree surface coverage. Its rotary table with spring holders enables precise exposure, while adjustable shot flow ensures optimal results. Outstanding features such as a dust collector, air-cooled system, automatic lubrication, and digital HMI panel make it suitable for high-volume applications in manufacturing and automotive industries. The heavy-duty steel frame ensures longevity and stable operation, meeting diverse industrial requirements.

Certifications, Delivery, and Port Details

This machine comes with all requisite quality certifications, reflecting eminent fabrication standards. Upon order, the delivery time is prompt, ensuring fast arrival at your site. The FOB port is located in India, and all charges, including shipping and installation, can be clarified upon inquiry. The asking price reflects the impeccable quality, reliability, and advanced technology integrated into the machine. Reach out for precise shipping timelines and detailed certification documentation.

FAQ's of Semi-Automatic Coil Spring Shot Peening Machine:

Q: How does the Semi-Automatic Coil Spring Shot Peening Machine ensure uniform peening coverage?

A: The machine utilizes a rotary table with spring holders, providing consistent 360-degree shot exposure and uniform surface treatment, supported by an adjustable shot flow rate and precise control systems.

Q: What are the primary usage applications of this shot peening machine?

A: It is mainly used for residual stress induction and surface enhancement in coil springs, ideal for automotive manufacturing, heavy equipment, and other industrial settings requiring high-quality spring performance.

Q: What is the process for ordering the machine and how long does delivery take?

A: To order, contact the manufacturer or supplier in India, specifying your requirements. Delivery times vary by location but are typically prompt; precise timelines are provided on inquiry.

Q: Where is the machine manufactured and what certifications does it hold?

A: This model is manufactured in India by an eminent exporter and supplier, and it carries internationally recognized quality certifications to ensure reliability and performance.

Q: What are the benefits of opting for optional upgrades like automatic loading/unloading or remote diagnostics?

A: Optional upgrades enhance productivity, reduce manual intervention, and offer remote troubleshooting, leading to increased efficiency and minimized downtime during operations.
