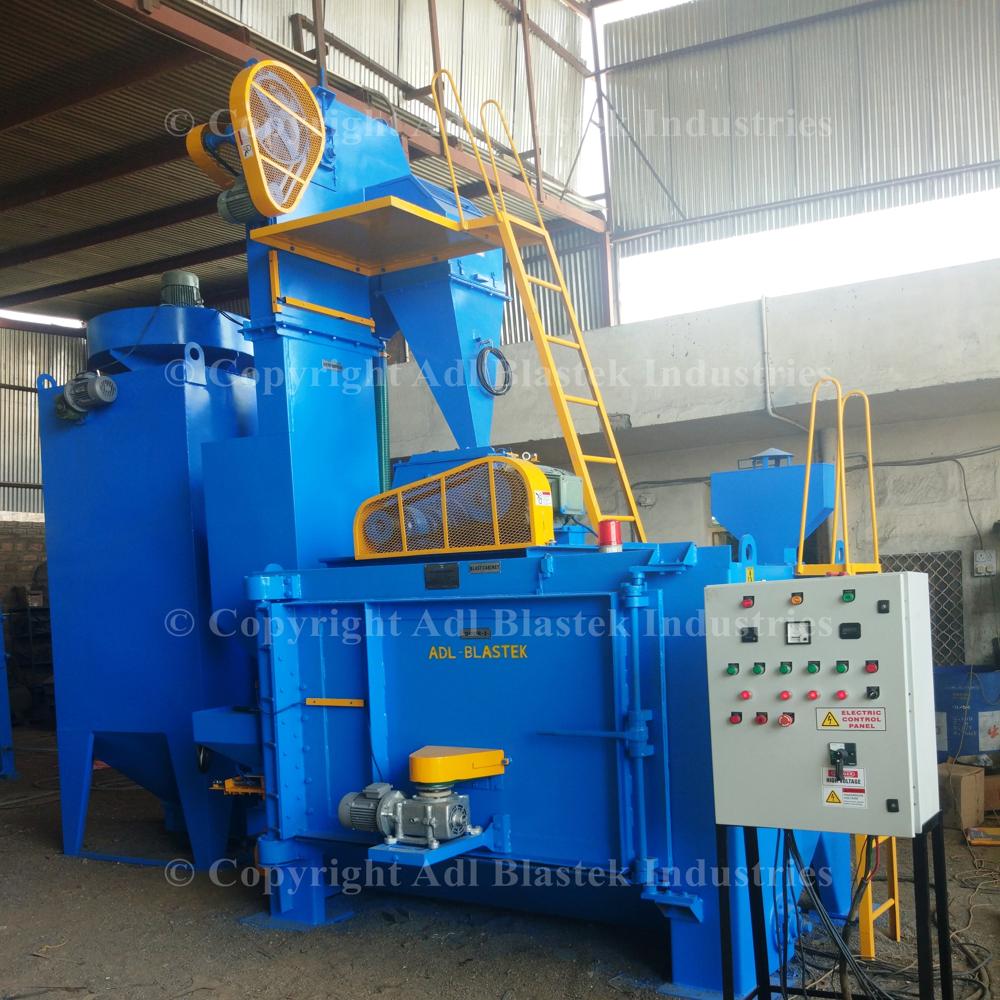

ADL Blastek Table type shot blasting machine

ADL Blastek Table type shot blasting machine Specification

Model No
ADL-TT-1200

Drive
Gear Motor Driven Table

Motor Power
7.5 kW Kilowatt (kW)

Country Of Origin
india

Frame Type
Welded, Rigid Frame

Features
Heavy duty table, dust extraction system, robust construction

Voltage
415 V Volt (v)

Production Capacity
6-8 pieces/hour Pcs/hr

Accuracy
Consistent coverage over component surface mg

Machine Type
airless

Lubricating System
Centralized lubrication

Frequency
50 Hz Hertz (HZ)

Operating Temperature
Ambient, Max 45C Celsius (oC)

Cooling System
Air Cooled

Connectivity Options
Local Control Panel

Power Rating
3 Phase, 415V

Noise Level
85 dB db

Product Type
Other

Technology
Other

Power Source
Electricity

Operating Type
Semi Automatic

Power
7.5 kW Watt (w)

Pressure
0.4 - 0.6 MPa mpa

Surface Treatment
Other

Dimension (L*W*H)
2100 x 1500 x 1800 mm Millimeter (mm)

Weight (kg)
1800 kg Kilograms (kg)

Color
Blue-Grey

Warranty
1 year

Usage & Applications
Surface cleaning, rust and scale removal from metal components

Working Speed
Variable, up to 25 RPM table speed

Blast Wheel Quantity
1 or 2 (custom configurable)

Chamber Lining
Manganese steel/Mn steel

Shot Separator
Magnetic & air wash separator

Control Panel Protection
IP54 rated

Max Workpiece Height
500 mm

Maintenance Access
Front and rear access panels

Table Load Capacity
800 kg

Installation Area Required
Approx. 10 m2

Dust Collector Type
Cartridge filter with auto pulse cleaning

Abrasive Hopper Capacity
150 kg

Abrasive Type
Steel shot or steel grit

Blasting Cycle Time
5-15 minutes, adjustable

Safety Features
Emergency stop, Interlocking system, Overload protection

Table Diameter
1200 mm

Door Type
Swing Door with Safety Interlocks

ADL Blastek Table type shot blasting machine Trade Information

Minimum Order Quantity
1 Number

Delivery Time
6 Week

About ADL Blastek Table type shot blasting machine

Introducing the rare, hot-selling ADL Blastek Table Type Shot Blasting Machine-your ace solution for first-rate surface treatment. Boasting a robust welded frame, ultimate safety features, and a large 1200 mm table, it delivers unmatched performance for rust removal, cleaning, and surface peening. With variable working speeds up to 25 RPM, a customizable blast wheel configuration, and a high-capacity 150 kg hopper, this machine guarantees efficiency. Add to cart this ultimate innovation, engineered for reliable, heavy-duty operation and precision control. Limited availability!

Ultimate Application & Robust Features

The ADL Blastek Table Type Shot Blasting Machine offers a versatile application method with a gear-driven, variable-speed table for both general and specific surface cleaning tasks. Equipped with a centrifugal blast wheel, dust extraction, and advanced cartridge filter, it ensures consistent cleaning and rust removal across a range of metal components. Its heavy-duty construction, safety interlocks, and adjustable blasting cycle make it ideal for workshops seeking reliable, ace-level performance with every process.

Main Market & Seamless Delivery Process

ADL Blastek Table Type Shot Blasting Machines cater extensively to the Indian market, with strong exporter, manufacturer, and supplier presence nationwide. Shipped from trusted FOB ports in India, each shipment is handled with care to ensure timely and secure delivery. Samples are available for assessment, enabling buyers to preview quality before full-order procurement. Rely on ADL for prompt delivery, smooth shipment, and ultimate satisfaction within the domestic market and beyond.

FAQ's of ADL Blastek Table type shot blasting machine:

Q: How does the ADL Blastek Table Type Shot Blasting Machine operate?

A: The machine operates on a semi-automatic cycle, employing a centrifugal blasting wheel and variable-speed table to clean and treat metal surfaces efficiently. Users can adjust the table speed and blasting time as required.

Q: What are the key benefits of using this shot blasting machine?

A: Key benefits include rapid rust and scale removal, consistent surface finish, heavy-duty capacity, advanced dust collection, and robust safety features-all designed for reliable, industrial-grade performance.

Q: What applications and industries is the ADL Blastek Table Type Shot Blasting Machine suitable for?

A: This machine is ideal for general and specific applications like surface cleaning, rust removal, and scale elimination on metal components. It's widely used in fabrication shops, foundries, and maintenance facilities.

Q: Where is this hot-selling shot blasting machine delivered from?

A: The machine is shipped from leading Indian FOB ports and delivered nationally across India to various industries and manufacturing units.

Q: How is safety ensured during the blasting process?

A: Safety is maintained with features such as emergency stop, safety interlocks on doors, overload protection, and robust construction, ensuring secure operation during each process cycle.
