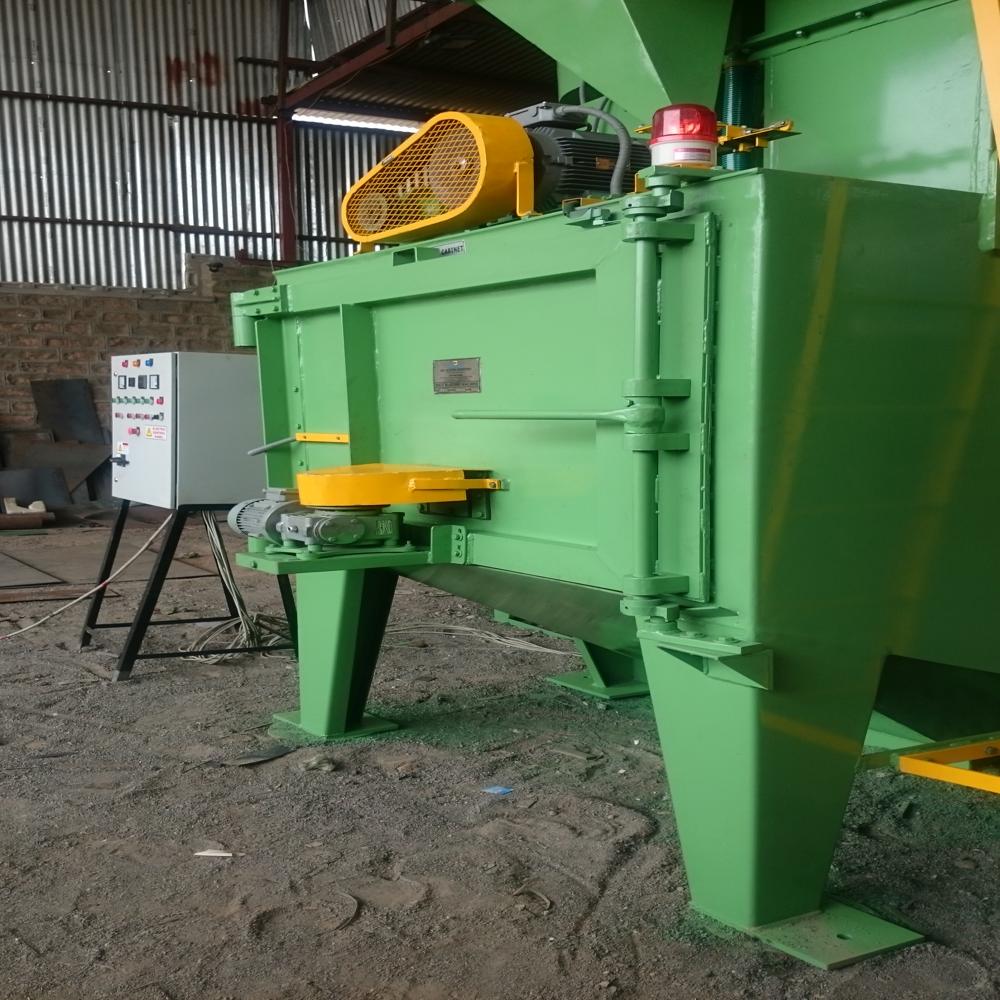

1200 Turn Table Shot Blasting Machine

About 1200 Turn Table Shot Blasting Machine

Table type shot blast machines are designed and built as fully integrated blast cleaning systems to handle larger and/or more fragile castings than barrel machines. They provide a cost effective solution for batch cleaning.

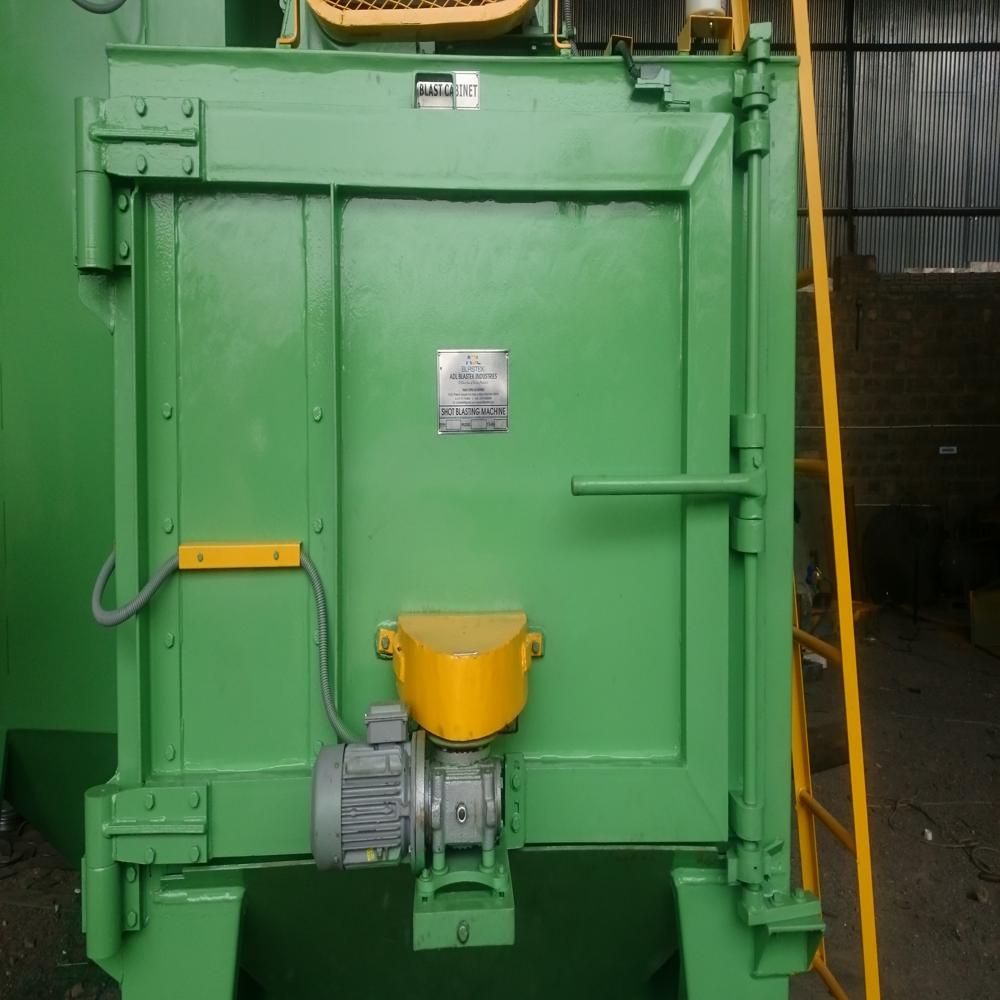

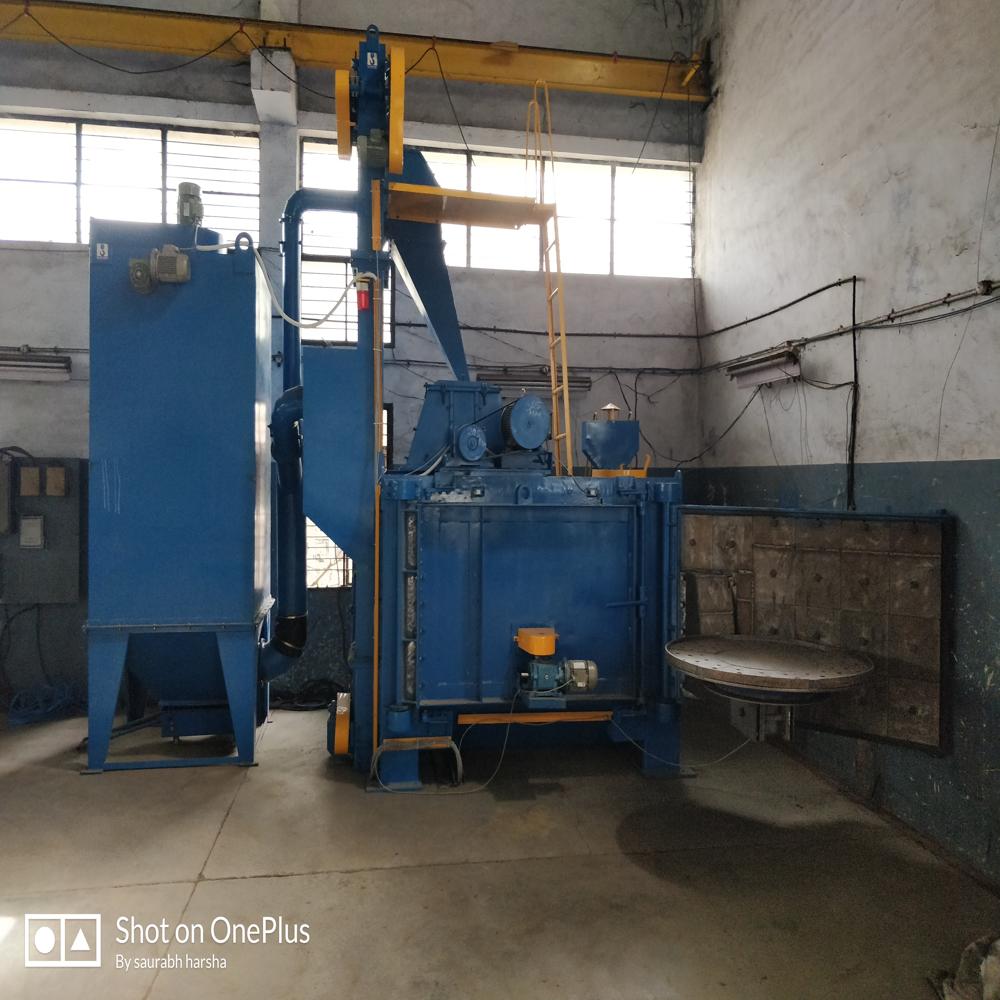

Table type Machine consists of Horizontal door with a table type work/job handling system. This table is directly mounted on the door and it rotates on its own axis, drive unit of this swing table is provided outside the door. This table swings out as the door is opened, making the full area easily approachable for loading and unloading of the components.For loading the components, door of the machine is opened manually &components to be blasted are loaded on to the work table area and the door of the machine is closed.

After this Blast wheel unit,which is strategically placed on the Blast cabinet, is started. Blast wheel will fire the abrasive at high velocity on the components placed on the rotating work table and blast cleans them thoroughly. Rotational mechanism of table ensures that each and every portion of the component will get exposed to the blast stream for through cleaning. The arrangement of the blast wheel ensures optimum blast cleaning and maximum utilization of the abrasive energy. After the required blasting cycle, blast wheel unit shuts off and door of the machine is opened manually for unloading of the components.

1200 Turn Table Shot Blasting Machine Manufacturer

1200 Turn Table Shot Blasting Machine Supplier

1200 Turn Table Shot Blasting Machine Exporter

Specification

Usage/Application	For Surface Blasting Purpose
Number of Doors	Single Door
Machine Type	Wheel Blasting
Power Required	12.5 HP
Capacity	5-10 Ton/Day
Automation Grade	Automatic
Driven Type	Belt Driven Wheel
Voltage	415 V
Phase	3 Phase
No. Of Blast Wheels	1
Wheel Size (inch)	12.5" X 2.5"
Drum Diameter	508 mm (Dia.) X 686 mm (W)
Model Number	BT-TBM-20X27
Shot Flow Rate	120 Kg/Wheel/Minute
Brand	Adl Blastek
Conveyor Belt	Rubber Belt
Max Advised Load	165 KG
Power Per Blast Wheel	7.5 HP
No. of Blades	8
RPM of Blast Wheel	2800 RPM
Approx Shot Velocity (Meter/Second)	70-80 Mtr/Sec
Type of Conveyor	Endless Rubber Belt Conveyor
Volume in CFT	2 CFT
Belt Hole Size (Standard)	8 mm
Type of Dust Collector	Fabric Bag type
Capacity of Dust Collector	1200 CFM
Filter Cleaning Arrangement	Manual Shaking Mechanism

Exceptional Precision and Performance

With a 99% accuracy rate and 38HP motor, the ADL-BT-STM delivers superior surface cleaning consistently across various metals. Its robust build and automatic operation streamline industrial processes, ensuring comprehensive and uniform results.


Versatile Applications Across Industries

Designed for applications in casting, forging, and sheet metal industries, the 1200 Turn Table Shot Blasting Machine adapts seamlessly to different operational needs, offering versatility for manufacturers and suppliers throughout India and beyond.


Advanced Control and Safety

Equipped with a fully automatic control system, the machine ensures user-friendly operation and minimal manual intervention. Its enclosed, airless design keeps the workspace safe, with moderate 85 dB noise levels for a comfortable environment.
