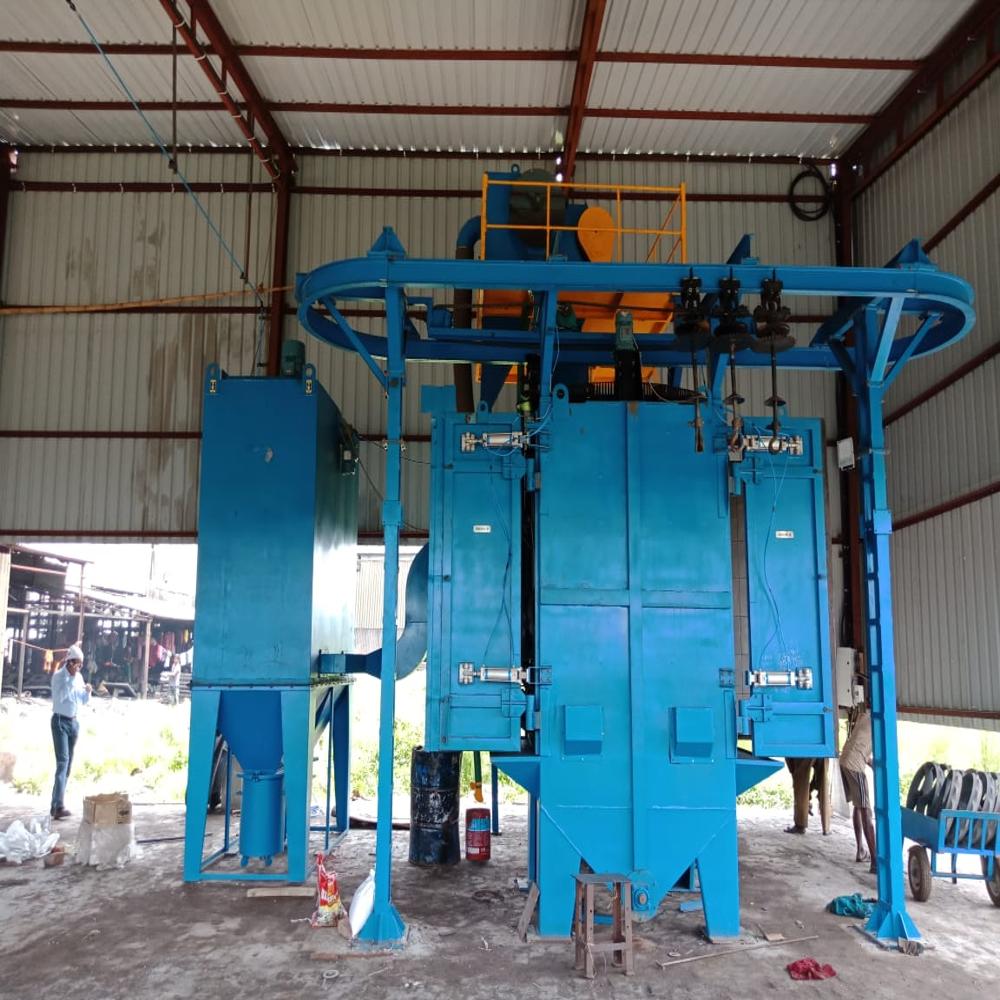

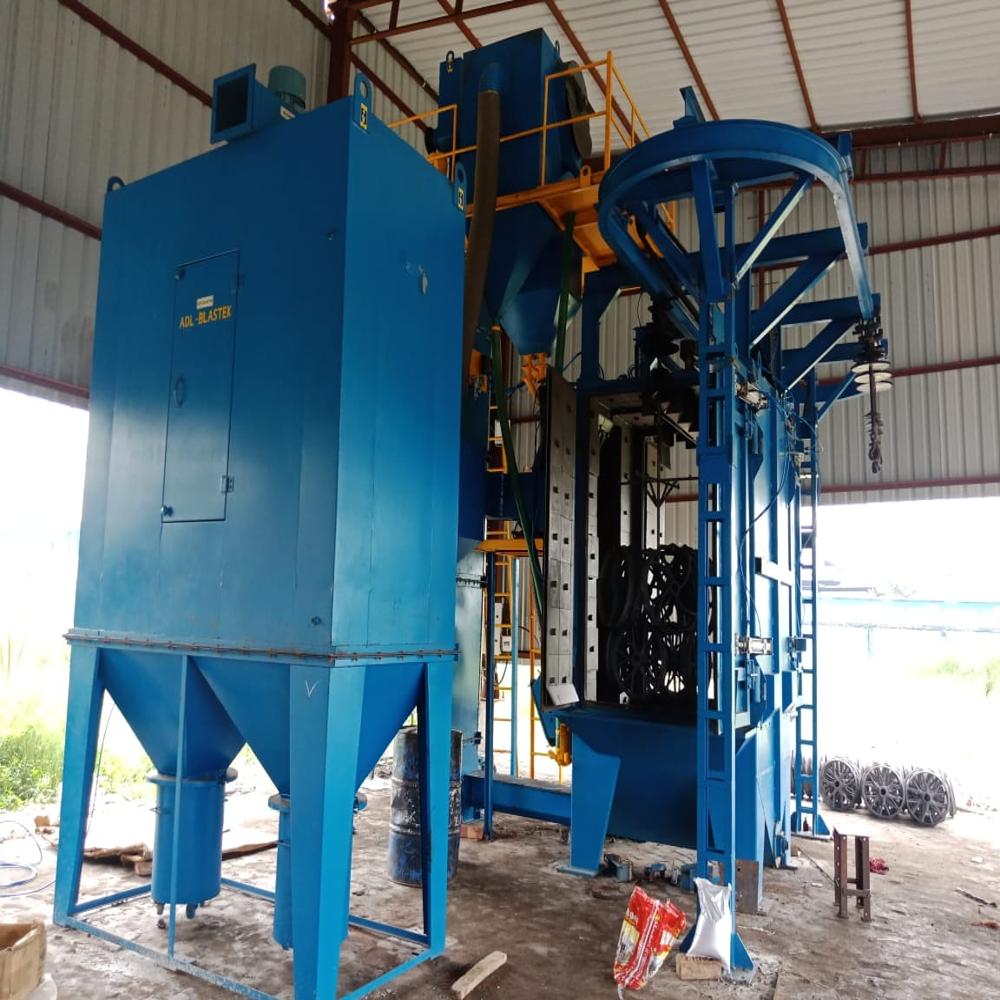

O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine
O Loop Hanger Shot Blasting Machine

O Loop Hanger Shot Blasting Machine

Price 1200000.0 INR/ Kilowatt

MOQ : 1 Kilowatt

O Loop Hanger Shot Blasting Machine Specification

  • Machine Type
  • AIRLESS
  • Accuracy
  • 99 %
  • Model No
  • ADL-BT
  • Country Of Origin
  • INDIA
  • Noise Level
  • 85 db
  • Motor Power
  • 20 Horsepower (HP)
  • Control System
  • Fully Automatic
  • Voltage
  • 415 Volt (v)
  • Product Type
  • Other
  • Technology
  • Other
  • Power Source
  • Electricity
  • Operating Type
  • Automatic
  • Power
  • 420 Volt (v)
  • Pressure
  • 6-7 Bar
  • Surface Treatment
  • Painted
  • Dimension (L*W*H)
  • 1500X450X450 Centimeter (cm)
  • Weight (kg)
  • 7-8 Metric Ton
  • Color
  • Darlk Blue
  • Warranty
  • 1 YEAR
  • Usage & Applications
  • Casting, Forging, Sheet metal etc


O Loop Hanger Shot Blasting Machine Trade Information

  • Minimum Order Quantity
  • 1 Kilowatt
  • FOB Port
  • Mundra
  • Supply Ability
  • 2 Kilowatts Per Month
  • Delivery Time
  • 1 Months
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Packaging charges will be charged on Ex. Works Price as detailed in our quotation. Only critical items will be Wooden Packed & rest of items will be Polyurethane bubble packed for protection.
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 ISO 14001:2015 ISO 45001:2015


About O Loop Hanger Shot Blasting Machine

Hanger type shot blast machines designed and built as fully integrated blast cleaning systems to handle large/small or more fragile castings than barrel/table type machines. They provide a cost-effective solution for batch cleaning.

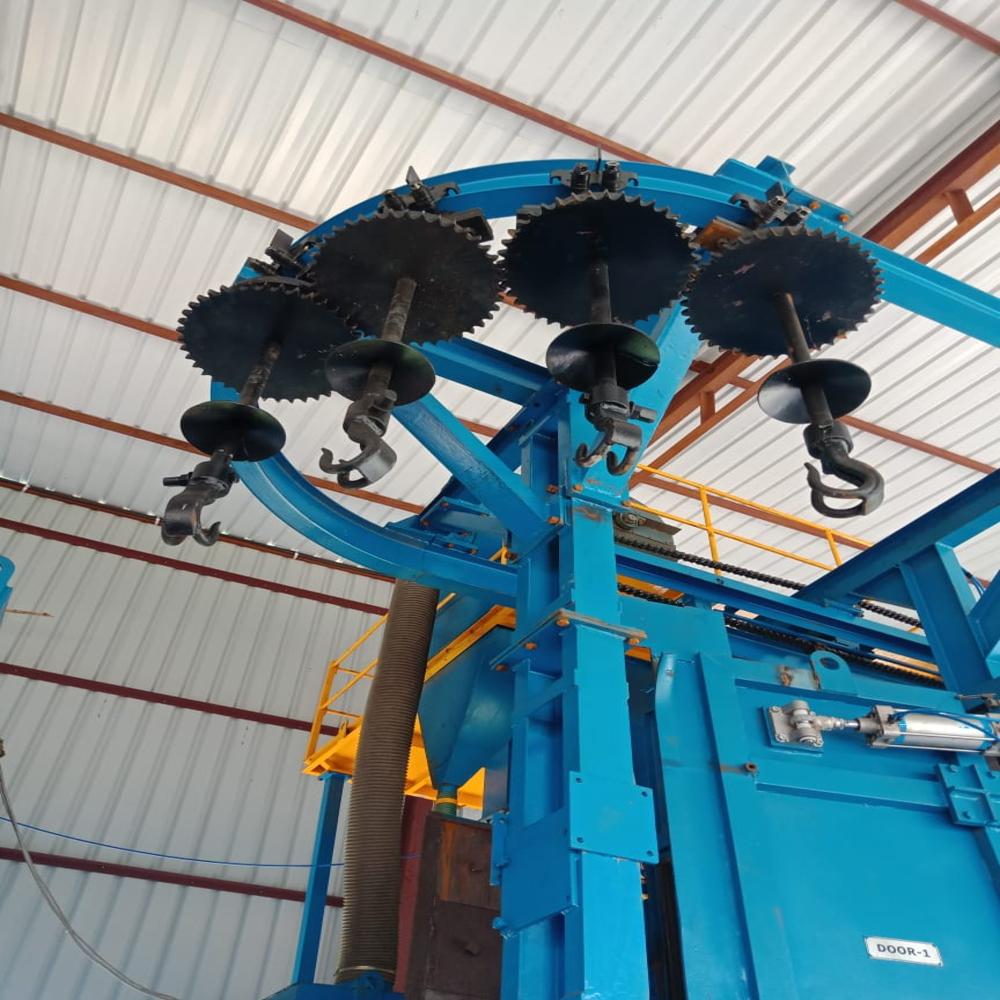

Hanger typeMachine consists of horizontal door with a rotating hanger type work/job handling system. This hanger is directly mounted on the door of the machine and itrotates on its own axis, drive unit of this hanger is provided outside thedoor. This hanger swings out as the door is opened, making the full area easilyapproachable for loading and unloading of the components. For loading the components, door of the machine is opened manually & components to be blasted are hanged one by one on to the door hanger and the door of the machineis closed.

After thistwo no's of Blast wheel units which are strategically placed on the Blastcabinet, is started. Blast wheels will fire the abrasive at high velocity onthe components hanged on the hangers and rotating in clockwise andAnti-clockwise direction and blast cleans them thoroughly. Bi-directionalrotational mechanism of hanger ensures that each and every portion of thecomponent will get exposed to the blast stream for through cleaning. The arrangement ofthe blast wheel ensures optimum blast cleaning and maximum utilization of theabrasive energy. After the required blastingcycle, blast wheel unit shuts off and door of the machine is opened manuallyfor unloading of the components.

Application of the Hanger Type machines-



  • Desanding and decoring of castings
  • Descaling of castings, forgings and heat-treated parts
  • Surface hardening (shot peening)
  • Desanding and decoring of castings.
  • Descaling of castings, forgings.
  • Surface hardening (shot peening).
  • Rust and heat scale removal
  • Surface texturing
  • Preparation for painting, bonding and plating
  • Deburring, deflating
  • Aesthetic/Cosmetic finishing of Die casting of Zinc, Aluminium & Alloy Steel.


Seamless Surface Cleaning

Designed for casting, forging, and sheet metal operations, this shot blasting machine provides efficient and uniform cleaning of complex components. Its airless design ensures powerful abrasion without compressed air, making it ideal for industrial-scale surface treatment and prepping.


Robust Construction and High Performance

With a sturdy frame weighing up to 8 metric tons, the O Loop Hanger Shot Blasting Machine operates at 20 HP, delivering consistent performance at 415/420 Volts. The automatic system allows for minimal operator intervention, ensuring precise and repeatable results every cycle.


Reliability and Quality Assurance

Manufactured in India, this machine offers a 99% accuracy rate and low noise output. Finished with a durable blue coating, it's backed by a one-year warranty, giving manufacturers peace of mind regarding quality, safety, and operational longevity.

FAQ's of O Loop Hanger Shot Blasting Machine:


Q: How does the O Loop Hanger Shot Blasting Machine operate?

A: This machine uses an airless shot blasting process, where abrasive media is propelled at high speed by a motor-driven impeller rather than using compressed air. The fully automatic control system manages all functions for uniform, efficient cleaning of castings, forgings, and sheet metals.

Q: What are the primary applications for this shot blasting machine?

A: The machine excels at cleaning and surface preparation in casting, forging, and sheet metal industries. It removes scale, rust, and surface contaminants, ensuring parts are properly prepared for further processing or coating.

Q: When should I use this machine in the production process?

A: Ideally, the O Loop Hanger Shot Blasting Machine should be implemented after primary forming processes like casting or forging, and before further machining, heat treatment, or painting, to ensure optimal surface cleanliness and adhesion.

Q: Where is the best location to install this machine?

A: Given its significant size (1500x450x450 cm) and weight, it's recommended to place this machine in a well-ventilated, robust industrial area with adequate floor support and access to a three-phase 415/420 Volt electrical supply.

Q: What benefits does the automatic control system provide?

A: The fully automatic control system enables precise operation, reduces manual intervention, and increases production efficiency. It helps maintain consistency in surface treatment, improves operator safety, and lowers the chances of handling errors.

Q: How do I maintain the accuracy and longevity of the machine?

A: Routine maintenance such as checking the impeller, replacing worn shot media, and periodic inspection of the painted surfaces and seals will help sustain the machine's 99% accuracy and extend its operating lifespan.

Q: What warranty support is provided?

A: Every O Loop Hanger Shot Blasting Machine comes with a one-year warranty covering manufacturing defects and essential parts, ensuring hassle-free operation and quick support directly from the manufacturer or supplier in India.
