shot blasting machine

shot blasting machine About

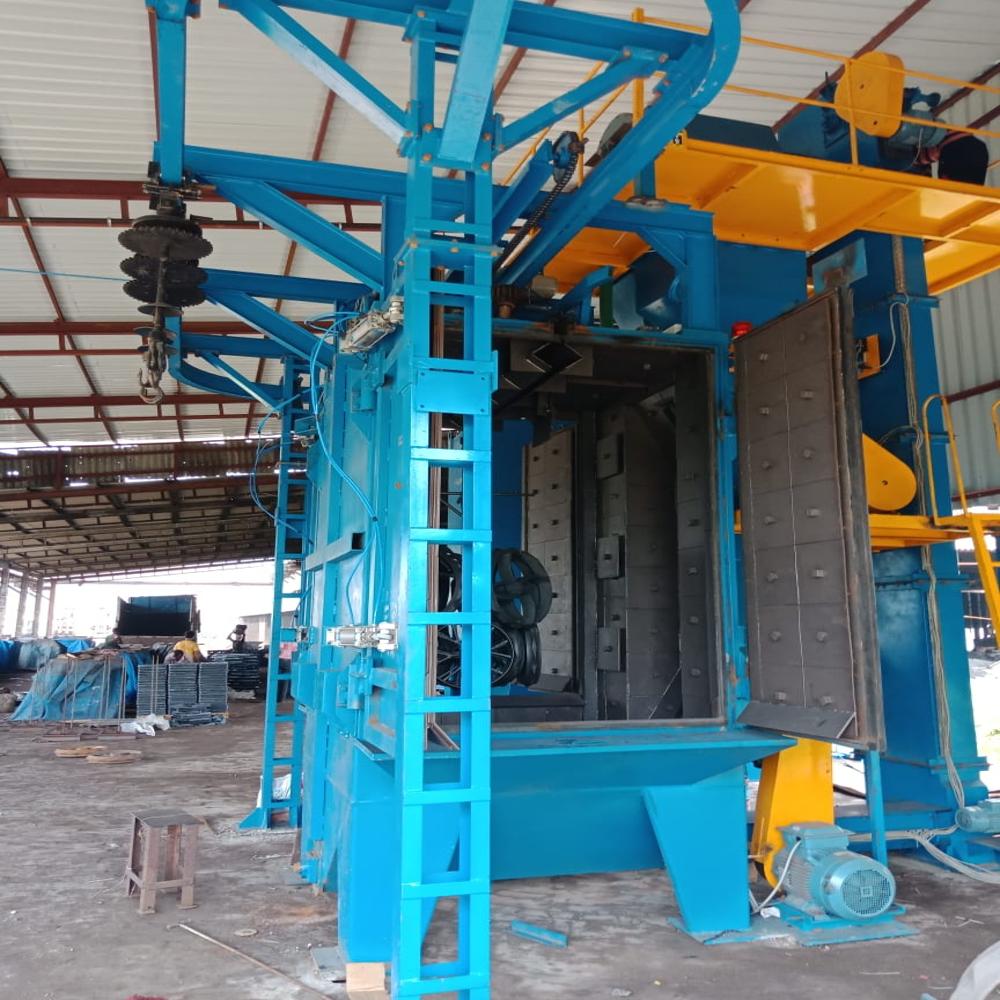

In this type of machines Job Handling system consists of Close Loop overhead Monorail I-beam type Conveyor with manual motorized Push-Pull trolley mounted hangers.This Monorail overhead conveyor consists of 4/6 (as per requirement) Nos of Manual Push-Pull Trolleys which holds Spinner hangers Hooks.

The components to be blasted are loaded on these trolley mounted hanger and one by one manually taken inside the Blast cabinet and then door of the machine is closed. After this, Blast wheel units which are strategically placed on the Blast cabinet are started. Blast wheels will fire the abrasive at high velocity on the components hanged on the hangers and rotating in clockwise and Anti-clockwise direction and blast cleans them thoroughly. Bi-directional rotational mechanism of hanger ensures that each and every portion of the component will get exposed to the blast stream for through cleaning. After the required blasting cycle, blast wheel unit shuts off and door of the machine is opened and the trolley containing the blasted components is taken out and at the same time another trolley containing components on close loop I-track moves in for blasting purpose. The machine is designed for continuous duty operation.

Machine comes with 2/4/6/8/10/12 Wheel (i.e. Rotor) Options, selection mainly depends upon the Component size, Production Output & surfaces to be blasted.

Close Loop Hanger Shot Blasting Machine Supplier

Close Loop Hanger Shot Blasting Machine Manufacturer

Close Loop Hanger Shot Blasting Machine Exporter

High Efficiency and Precision

Experience remarkable precision with 99% accuracy from the ADL-BT- shot blasting machine. Its airless operation ensures swift and uniform surface treatment, reducing manual labor and enhancing overall productivity. The machine is highly suitable for businesses dealing with high-precision casting, forging, and sheet metal applications, offering dependable results on every run.


Robust Design and Safety

With a weight of 6 tonnes and a dimension of 250x190x380 cm, this machine is engineered for heavy-duty industrial environments. The dark blue painted finish protects against corrosion, while advanced safety features keep operators protected. Its sturdy frame supports extended use, making it a trusted choice for long-term investment in manufacturing operations.


User-Friendly Operation and Maintenance

Operating automatically and powered by a 24 HP motor, the shot blasting machine simplifies processes while maintaining consistent pressure at 6-7 bar. Easy-to-access controls and a straightforward interface allow for seamless integration into existing production lines. Maintenance is hassle-free, helping to reduce downtime and extend machine lifespan.
