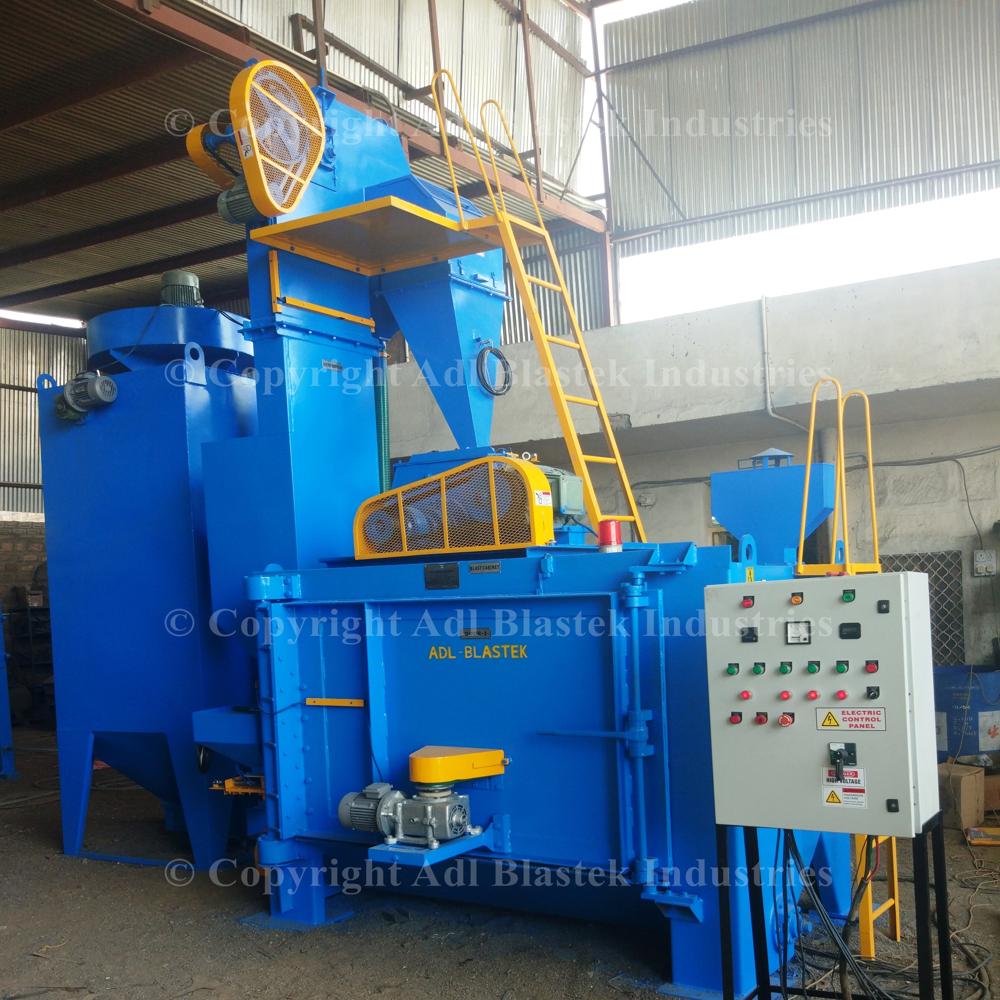

Swing Table type shot blast machines are designed and built asfully integrated blast cleaning systems to handle larger and/or more fragilecastings than barrel machines. They provide a cost effective solution for batch cleaning.

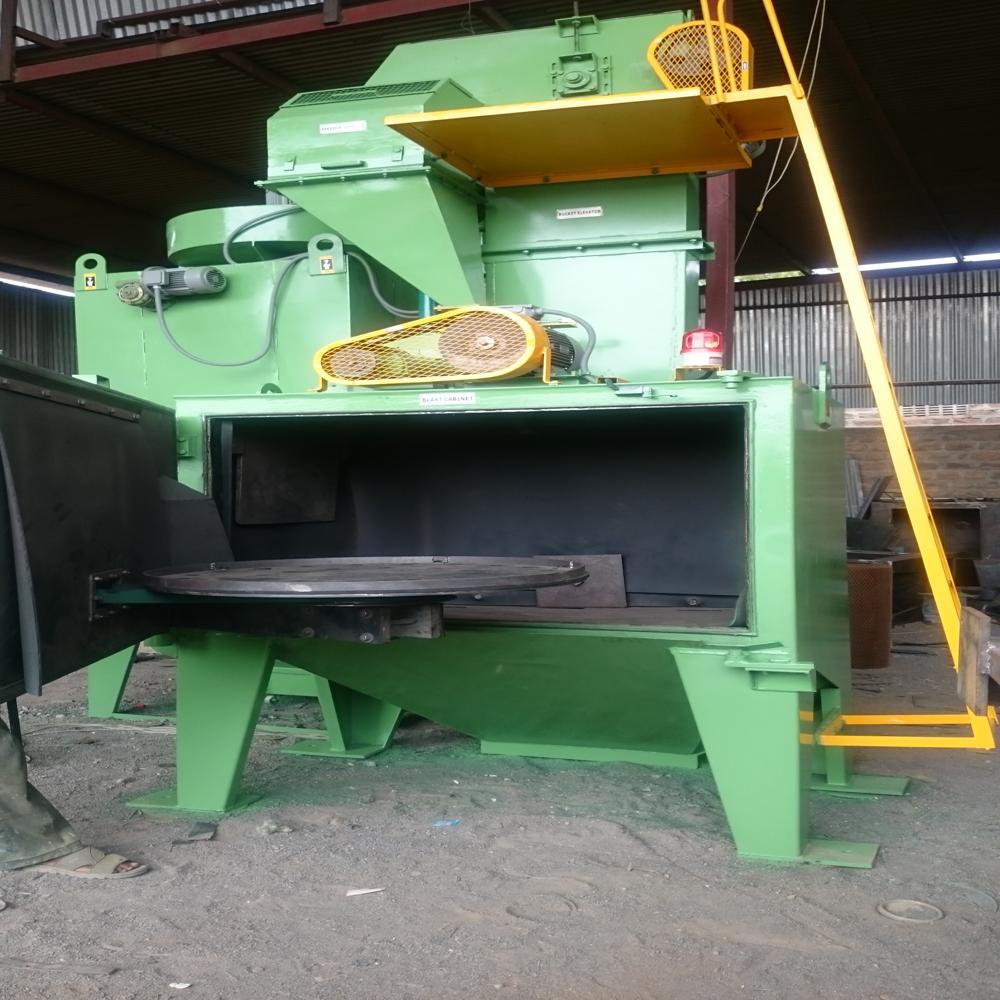

Swing Table type Machine consists of Horizontal door with a table type work/job handling system. This table is directly mountedon the door and it rotates on its own axis, drive unit of this swing table isprovided outside the door. This table swings out as the door is opened, making the full area easily approachable for loading and unloading of the components. For loading the components, door of the machine is opened manually &components to be blasted are loaded on to the work table area and the door ofthe machine is closed.
After this Blast wheel unit,which is strategically placed on the Blast cabinet, is started. Blast wheelwill fire the abrasive at high velocity on the components placed on therotating work table and blast cleans them thoroughly. Rotational mechanism oftable ensures that each and every portion of the component will get exposed tothe blast stream for through cleaning. The arrangement of the blast wheel ensures optimum blastcleaning and maximum utilization of the abrasive energy. After the required blasting cycle, blast wheel unitshuts off and door of the machine is opened manually for unloading of thecomponents.
