Plate Shot Blasting Machine

Name: Plate Shot Blasting Machine
Brand: ADL BLASTEK INDUSTRIES
Price: 1200000.0 INR
Availability: InStock

Price 1200000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Plate Shot Blasting Machine Specification

Country Of Origin
INDIA

Accuracy
99 %

Motor Power
25 Horsepower (HP)

Model No
ADL-BT-ARC

Control System
Fully Automatic

Machine Type
AIRLESS

Noise Level
85 db

Voltage
415 Volt (v)

Product Type
Other

Technology
Other

Power Source
Electricity

Operating Type
Automatic

Power
420 Volt (v)

Pressure
6-7 Bar

Surface Treatment
Painted

Dimension (L*W*H)
1500X450X450 Centimeter (cm)

Weight (kg)
4 Tonne

Color
Dark Blue

Warranty
1 YEAR

Usage & Applications
Casting, Forging, Sheet Metal

Plate Shot Blasting Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Mundra

Payment Terms
Cash in Advance (CID), Letter of Credit (L/C), Cheque, Cash Advance (CA)

Supply Ability
3 Units Per Month

Delivery Time
2 Months

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Packaging charges will be charged on Ex. Works Price as detailed in our quotation. Only critical items will be Wooden Packed & rest of items will be Polyurethane bubble packed for protection.

Main Domestic Market
All India

Certifications
ISO 9001:2015 ISO 14001:2015 ISO 45001:2015

About Plate Shot Blasting Machine

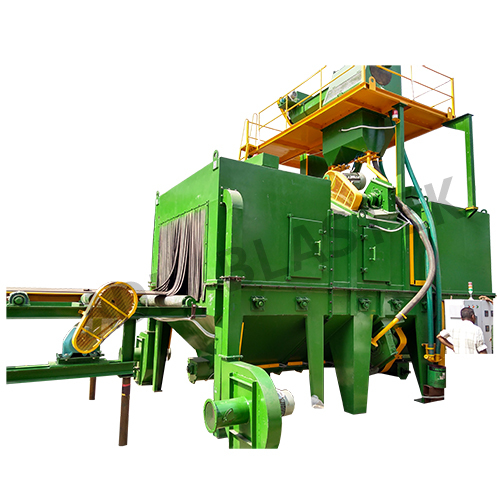

It consists of inlet and outlet side Rollerconveyors as material handling systems. The components to be blasted are placedon inlet side of the roller conveyor, from where it travels forward and entersinto the inlet tunnel. After passing through the inlet tunnel components entersinto the blast zone which consists of 4 nos of Blast Wheels. All these Blast wheel units are strategically placedaround the Blast cabinet. The arrangement of the blast wheel ensures optimum blastcleaning and maximum utilization of the abrasive energy. Blast wheels fires the abrasive at high velocity onthe forward moving components & blast cleans them thoroughly. Blastedmaterial moves forward and enters into the outlet tunnel. The spent abrasivefrom blasting operation after passing through the perforated floor plates willget collected into the cabinets bottom storage hopper. From where it istransferred to the bucket elevator, which elevate the abrasivevertically and discharges the same into a media separation unit where dust andfine abrasives are cleaned ensuring that only clean abrasive will re-circulateto the blast wheel units for effective and better cleaning. A Dust collectionsystem is provided with the machine which will continuously remove the dust andfine particles, thus keeping the inside of the machineand the nearby environment dust & pollution free.

Plate Shot Blasting Machine Manufacturer

Plate Shot Blasting Machine Supplier

Plate Shot Blasting Machine Exporter

Reliable and Efficient Surface Cleaning

Equipped with a robust 25 HP electric motor and fully automatic controls, the Plate Shot Blasting Machine ensures thorough cleaning for casting, forging, and sheet metal applications. Its 99% accuracy provides consistent results, making it an asset for industries demanding precision and reliability in surface treatment processes.

Built for Heavy-Duty Industrial Use

With a substantial weight of 4 tonnes and a solid painted finish, this machine is designed to handle rigorous operations. Its sizable 1500x450x450 cm frame accommodates large workpieces, making it suitable for high-volume production settings where speed and durability are crucial.

FAQ's of Plate Shot Blasting Machine:

Q: How does the Plate Shot Blasting Machine improve surface preparation for industrial applications?

A: This machine enhances surface cleaning by removing impurities, rust, and old coatings efficiently from casting, forging, and sheet metal, ensuring optimal adhesion for subsequent treatments or coatings.

Q: What is the process of operating this fully automatic shot blasting machine?

A: The machine is operated via an integrated control system. Materials are loaded, and the machine automatically manages blasting cycles using airless technology, requiring minimal human intervention and ensuring uniform cleaning.

Q: When should maintenance be scheduled for this 4-tonne shot blasting unit?

A: Routine maintenance is recommended after every major production cycle or as specified in the manufacturer's manual, usually at intervals that prevent excessive wear and uphold performance standards.

Q: Where can this machine be used effectively?

A: This machine is ideal for use in foundries, fabrication plants, and manufacturing facilities-any setting dealing with casting, forging, or sheet metal preparation, primarily catering to high-volume operations.

Q: What are the notable benefits of the ADL-BT-ARC model's fully automatic operation?

A: Its automation reduces manual labor, improves consistency in results, and enhances overall operational safety and productivity.

Q: How does the control system contribute to the machine's accuracy and efficiency?

A: The advanced control system precisely regulates all operational parameters, ensuring 99% cleaning accuracy and optimal use of power and blasting materials.
